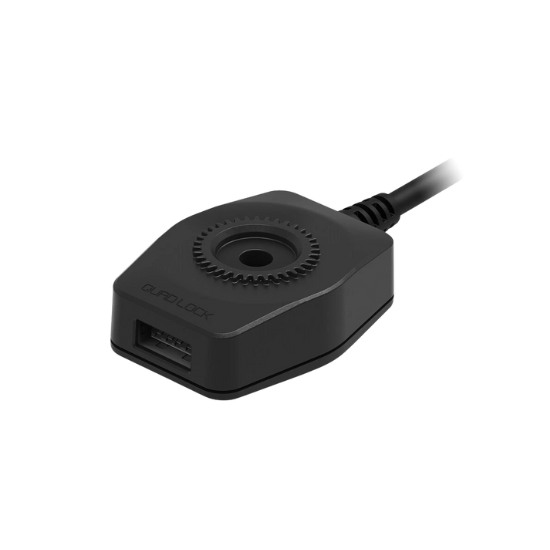

Purpose / Use: Offers on-bike USB power so you can charge your device (phone, GPS, etc.) while riding, seamlessly integrating under a Quad Lock motorcycle mount head.
Electrical / Charging Specs:
• Supports Quick Charge 2.0 (5V-2A, 9V-1.67A, 12V-1.5A)
• Draws zero current when not in use, so it won't drain your battery.
• Includes surge protection, polarity protection, and a self-healing poly fuse.
Housing / Resistance:
• The housing is IP66 water-resistant, suitable for outdoor motorbike use.
• The USB socket is rated IPX8 waterproof (so no need for a cover)
Wiring / Installation:
• Comes with a 1.5 m SAE cable and a 20 cm SAE to battery ring terminal cable, so you can connect via existing SAE port or directly to battery.
• It is designed to “nest” neatly underneath the Quad Lock mount head, minimizing visible wiring.
Voltage Input Range: 12 V to 24 V DC input.
